| Technical indices | |||
|---|---|---|---|
| Unit | M3 – 4 | M3 – 8 | |
| Capacity | bottle/h | 6000 | 12000 |
| Number of closing elements | pcs | 4 | 8 |
| Air consumption at p = 0,3 MPa | m3/h | 3 | 5 |
| Power consumption | kW | 1.1 | 1.3 |
| Dimensions: | |||
| length | mm | 1410 | 1410 |
| width | 1030 | 1030 | |
| height | 2560 | 2560 | |
| Weight | kg | 680 | 740 |

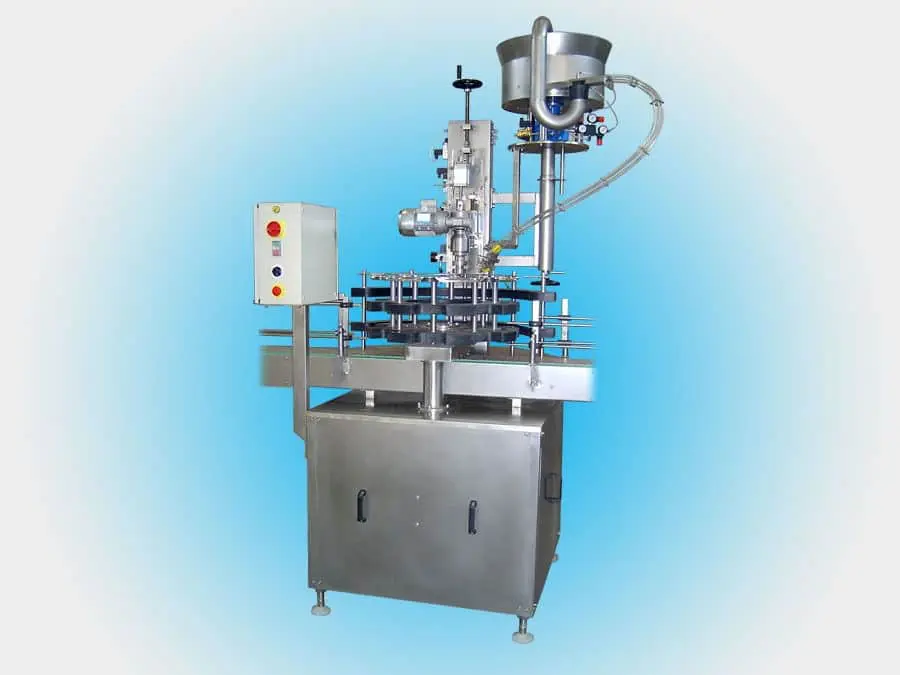

Bottle closing machine with screw caps MB-1
These machines are designed for capping of plastic (PET) or glass bottles with plastic screw caps or aluminium caps type ‘pilferproof’. These are rotary machines and they have a number of capping elements (capping heads).
The machines operate completely automatic. Bottles are fed to the capping heads by a conveyor screw and an input spider. Capping machines are equipped with an orienting mechanism and a device for feeding of caps according to their type. Capped bottles are taken out to a conveyor. The bottle- capping machine has a separate drive and a control device for capacity with a frequency regulator without degrees. They are equipped with protective facing. The control of bottle- capping machine for bottles with different height is done through a lifting device driven by an electric motor.
Accessoaries
 | SCREW CAPPING HEAD FOR PLASTIC SCREW CAPS |
| Capping head for plastic screw caps are the main capping element in bottle-filling machines and bottle-filling- capping automats for filling of non- fizzy drinks or fizzy food liquids in plastic PET bottles or glass bottles with screws. Heads consist of magnet coupling that can control the tightening strength of caps. Heads can be adopted for capping of caps with different sizes and form through a removable mouthpiece. | |
 | SCREW CAPPING HEAD FOR ALUMINIUM CAPS TYPE “PILFERPROOF” |
| Capping heads for metal aluminium screw caps are the capping element of bottling machines and bottle-filling- capping automats for bottling of non- fizzy drinks in glass bottles with screw. Heads consist of screw- forming rollers and rolls for “secret” ring forming. Any head is designed for capping of bottles with definite diameter, height and form. Upon change of caps, all head is replaced in the bottle-filling machine. | |
