| Technical indices | |||||||
|---|---|---|---|---|---|---|---|
| Unit | MBH 24/6 | MBH 30/8 | MBH 40/8 | MBB 24/6 | MBB 30/8 | MBB 40/8 | |
| Number of bottling valve | pcs | 24 | 30 | 40 | 24 | 30 | 40 |
| Number of capping heads | pcs | 6 | 8 | 8 | 6. | 8 | 8 |
| Power consumption | kW | 1.9 | 2.6 | 3.4 | 1.9 | 2.6 | 3.4 |
| Air consumption at p = 0,35 MPa | m3/h | 5 | 7 | 9 | 5 | 7 | 9 |
| Dimensions: | |||||||
| length L | mm | 2130 | 2600 | 2900 | 2130 | 2600 | 2900 |
| width B | mm | 1600 | 1940 | 2340 | 1600 | 1940 | 2340 |
| height H | mm | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 |
| Weight | kg | 3000 | 4200 | 5400 | 2600 | 3800 | 4200 |

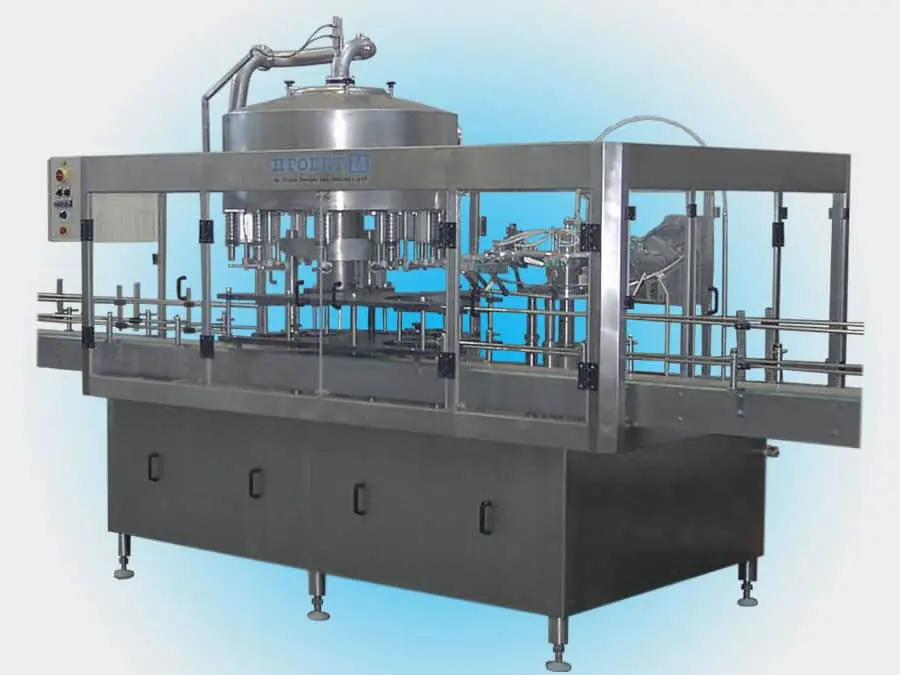

Bottle-filling and capping automats (PZA)
Bottle-filling and capping automats (PZA) are designed for bottle- filling in plastic (PET) or glass bottles and capping them with plastic screw caps or aluminum caps type ‘pilferproof’ in the food, wine and tobacco industry. They are divided into two main types according to their construction:
- Automats for bottle-filling of non-fizzy drinks – MBV;
- Automats for bottle-filling of fizzy drinks – MBN.
Both types of the machine can be operated with bottles 155 to 325 mm high and with diameter from 55 to 104 mm. Capacity of the machines varies according to the bottle volume.
Bottle- filling is done according to a set level. Full bottles are taken to the capping section by an intermediate spider. Any machine can operate with different types of bottles that differentiate in volume and their height and diameter is within the above-mentioned scale, but in case the bottles have the same bottle mouth. For any type of bottle is produced additional set that can be easily changed.
Bottle- filling and capping machine has a separate drive and a control device for capacity with a frequency regulator without degrees. They are equipped with protective facing. They are produced in different types.
Accessoaries
| VALVE FOR BOTTLE-FILLING UNDER PRESSURE | |
| Valve for bottle-filling under pressure is a filling element of bottle-filling machines and bottling- capping automats for filling of fizzy drinks. It is a combination of a lifting cylinder and a bottle-filling element and it is designed for filling only of plastic PET bottles. Valve can be used for filling of non- fizzy drinks provided there is overpressure minimum of 1 bar in the tank. | |
 | FILLING VALVE FOR NON- FIZZY DRINKS |
| This valve is designed for filling of non-fizzy drinks (table water or mineral water, wine, highly alcoholic drinks, oil etc.) This is a filling device of bottle-filling machines and bottling- capping automats for filling of non- fizzy drinks. They can operate using vacuum in the tank as well as under atmospheric pressure. | |
 | SCREW CAPPING HEAD FOR PLASTIC SCREW CAPS |
| Capping head for plastic screw caps are the main capping element in bottle-filling machines and bottle-filling- capping automats for filling of non- fizzy drinks or fizzy food liquids in plastic PET bottles or glass bottles with screws. Heads consist of magnet coupling that can control the tightening strength of caps. Heads can be adopted for capping of caps with different sizes and form through a removable mouthpiece. | |
 | SCREW CAPPING HEAD FOR ALUMINIUM CAPS TYPE “PILFERPROOF” |
| Capping heads for metal aluminium screw caps are the capping element of bottling machines and bottle-filling- capping automats for bottling of non- fizzy drinks in glass bottles with screw. Heads consist of screw- forming rollers and rolls for “secret” ring forming. Any head is designed for capping of bottles with definite diameter, height and form. Upon change of caps, all head is replaced in the bottle-filling machine. | |
