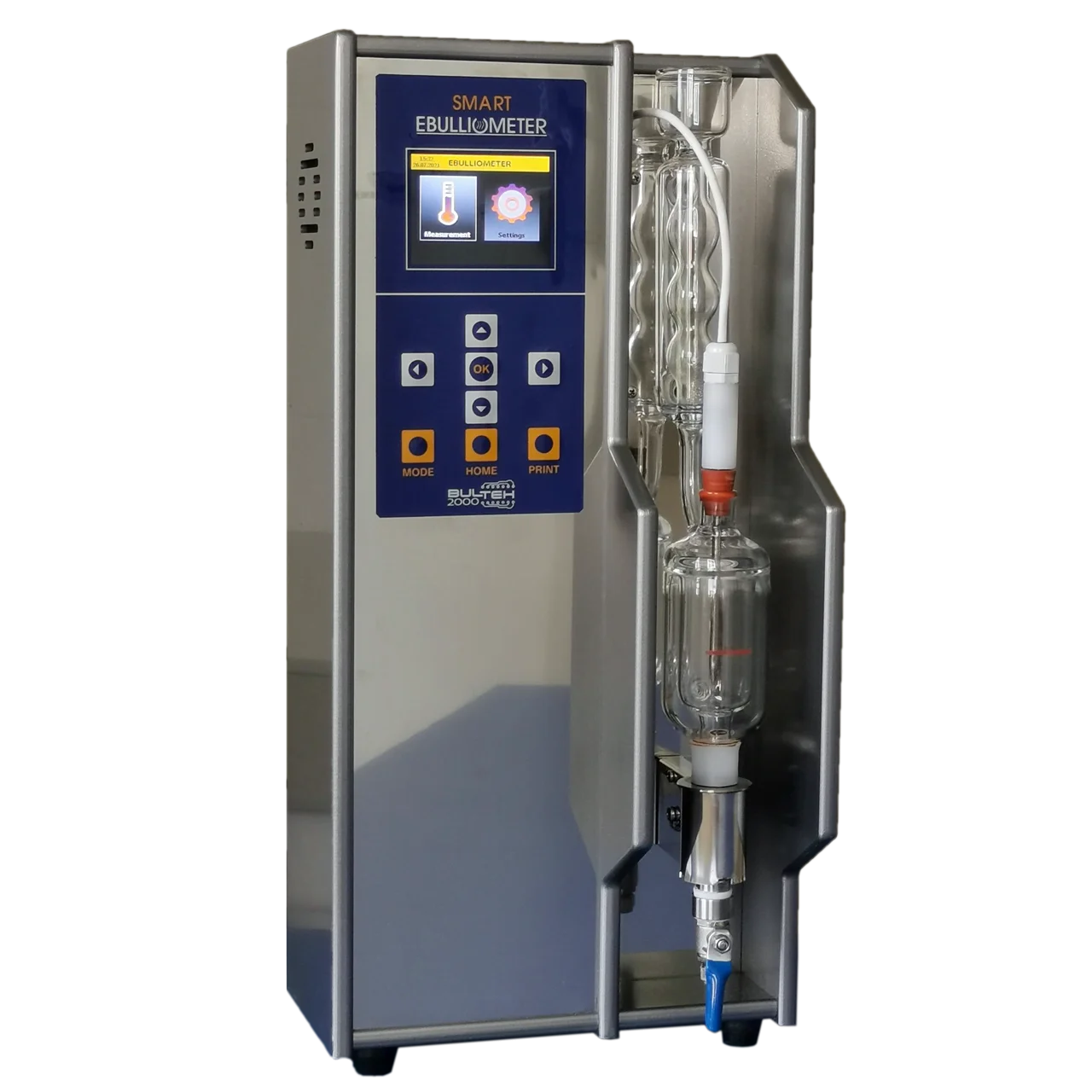

SMART Ebulliometer is a newly designed instrument for fully automated measurement of ethyl alcohol content percentage in wine. The built-in high precision digital temperature sensor, high precision atmospheric pressure sensor and automatic boiling temperature determination algorithm avoid the needs of manual water measurement and tracking of the measurement process. Due to the process automation SMART Ebulliometer is extremely easy for use and can be operated by inexperienced personnel providing very fast and accurate measurement.
7
| Alcohol volume measurement | ||
|---|---|---|
| Range | 1-15% | 15 – 25% |
| Resolution | 0.01% | 0.01% |
| Repitability | ±0.05% | ±0.1% |
| Accuracy | ±0.1% | ±0.2% |
| Boiling point measurement | ||
| Range | 0-120°C | |
| Resolution | 0.001°C | |
| Repitability | ±0.02°C | |
| Accuracy | ±0.03°C | |
| Atmospheric pressure measurement | ||
| Range | 700 – 1100 hPa | |
| Resolution | 0.1 hPa | |
| Repitability | ±0.2 hPa | |
| Accuracy | ±0.3 hPa | |
| Ambient air temperature | 15° – 35°C |
| Relative ambient humidity | 30 – 80% |
| Temperature of sample measured | 10°C to 45°C |
