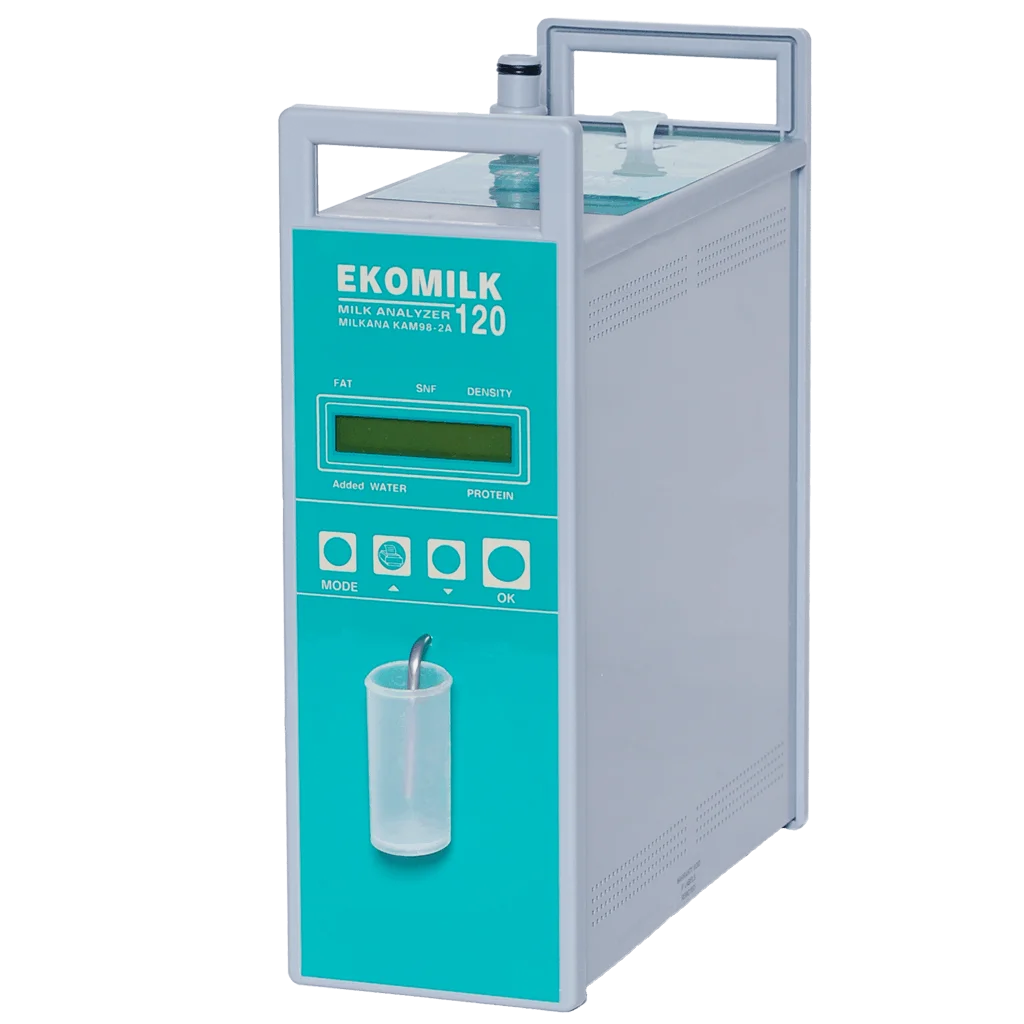

Milk analyzer Ekomilk 120

Robust, reliable, automated multi-parameter milk analyzer based on ultrasonic technology;

Rapid test for Fat, Solids Not Fat, Density, Added Water Protein Freezing point, pH, Temperature, Conductivity, Lactose, Milk Cream channel and Titrable acidity

Measuring cycle 20-25 measurement per hour

Category: Milk analyzers Ekomilk Tags: Ekomilk, milk analyzer

Key Features

Simple in use and maintenance, reliable and automated
Multi-parameter milk analysis
Customer available readjustment of measurement accuracy
Fast and low cost analysis
No acid or other chemicals are used
Very small quantity of milk is required
Short measurement time and low power consumption
One year full warranty
Serial thermal printer support
RS 232 Interface;
Milk data demo software.

Measuring Parameters

Standard parameters:
Fat	0,5% to 12% with accuracy ± 0,1%
Solids non fat (SNF)	6% – 12% with accuracy ± 0.2%
Milk density	1,0260 g/cm ³ – 1,0330 g/cm ³± 0.0005 g/cm ³
Protein	2% – 6% with accuracy ± 0.2%
Freezing Point	from 0 to -1.000 °C with accuracy ± 0,015 °C
Added water to milk	0% – 60% with accuracy ± 5%
Additional options:
Lactose	0.5% to 7% with accuracy ± 0,2%
pH + temperature	0,00 – 14 pH with accuracy ± 0,02 0 – 50 °C with accuracy± 0,1 °C
pH + temperature + titratable acidity	0,00 – 14 pH with accuracy ± 0,02 0 – 50 °C with accuracy± 0,1 °C °Th, % La, °SH, °D
Conductivity	2 – 20 mS/cm with accuracy ± 1 % (18°C)

Conditions

Environmental Conditions:

Ambient air temperature 15° – 30°C
Milk temperature 5° – 35°C
Relative humidity 30% – 80%

Electrical Parameters:

AC Power Supply voltage 220V +10%/-15% Optional – 110V +10%/-15%
DC Power Supply voltage 12V (10,5 V to 14,2 V)
Power Consumption 30W max

Mechanical Parameters:

Dimensions (WxDxH)
95 x 300 x 250 mm
Weight < 3,5 kg

Options

Data collection system

An embedded Data collection system that allows up to 120 milk measurement records to be saved inside the Analyzer. Each record contains all milk measured parameters values, milk vendor code, milk volume and the date and time of measurement. All these data can be transferred later to a PC trough the RS 232 interface.
