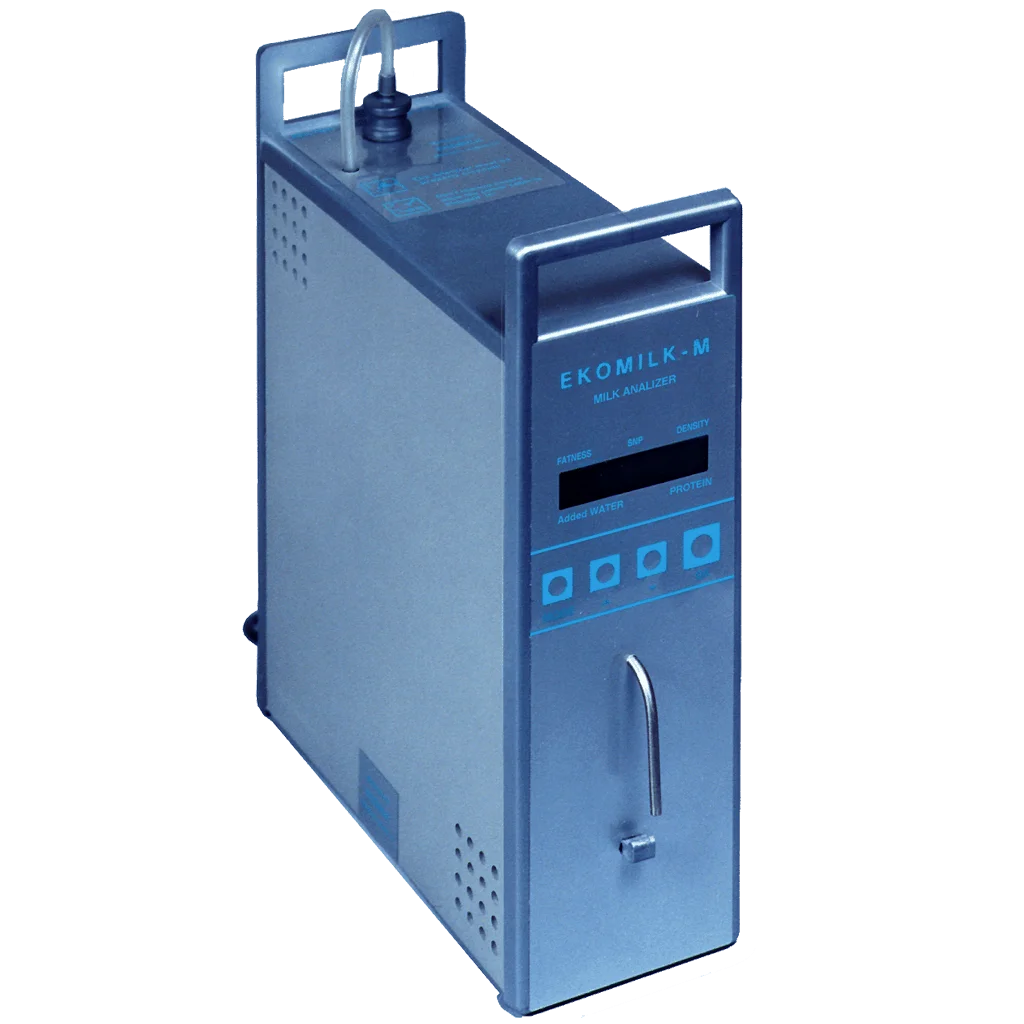

Milk analyzer Ekomilk M

Ekomilk M ultrasonic milk analyzer is robust, reliable, automated multi-parameter milk analyzer providing rapid test results for: Fat, Protein, Solids Not Fat, Lactose, Density, Freezing point, Added Water, pH, Temperature and Conductivity in fresh milk (cow, sheep and/or buffalo, goat) for 90 seconds . Based on ultrasonic technology, the instrument does not require any costly chemicals, caustic or reagents for testing.

Measuring cycle 30-35 measurement per hour

Category: Milk analyzers Ekomilk Tags: Ekomilk, milk analyzer

Key Features

Simple in use and maintenance, reliable and automated
Multi-parameter milk analysis
Customer available readjustment of measurement accuracy
Fast and low cost analysis
No acid or other chemicals are used
Very small quantity of milk is required
Short measurement time and low power consumption
One year full warranty
Serial thermal printer support
RS 232 Interface
Milk data demo software

Measuring Parameters

Standard parameters:
Fat	0.5% – 12% ± 0.1%
Solids non fat (SNF)	6% – 12% ± 0.2%
Milk density	1,0260 g/cm³ – 1,0330 g/cm³± 0.0005 g/cm³
Protein	2% – 6% ± 0.2%
Freezing Point	from 0 to -1.000 °C with accuracy ± 0,015 °C
Added water to milk	0% – 60% ± 5%
Additional options:
Lactose	0.5% to 7% with accuracy ± 0,2%
pH + temperature	0,00 – 14 pH with accuracy ± 0,02 0 – 50 °C with accuracy± 0,1 °C
pH + temperature + titratable acidity	0,00 – 14 pH with accuracy ± 0,02 0 – 50 °C with accuracy± 0,1 °C °Th, % La, °SH, °D
Conductivity	2 – 20 mS/cm with accuracy ± 1 % (18°C)

Conditions

Environmental Conditions

Ambient air temperature 15° – 30°C
Milk temperature 5° – 35°C
Relative humidity 30% – 80%

Electrical Parameters

AC Power Supply voltage 220V +10%/-15% (Optional – 110V +10%/-15%)
DC Power Supply voltage 12V (10,5 V to 14,2 V)
Power Consumption 30W max

Mechanical Parameters:

Dimensions (WxDxH)
95 x 300 x 250 mm
Weight < 3,5 kg

Options

Data collection system

An embedded Data collection system that allows up to 120 milk measurement records to be saved inside the Analyzer. Each record contains all milk measured parameters values, milk vendor code, milk volume and the date and time of measurement. All these data can be transferred later to a PC trough the RS 232 interface.
