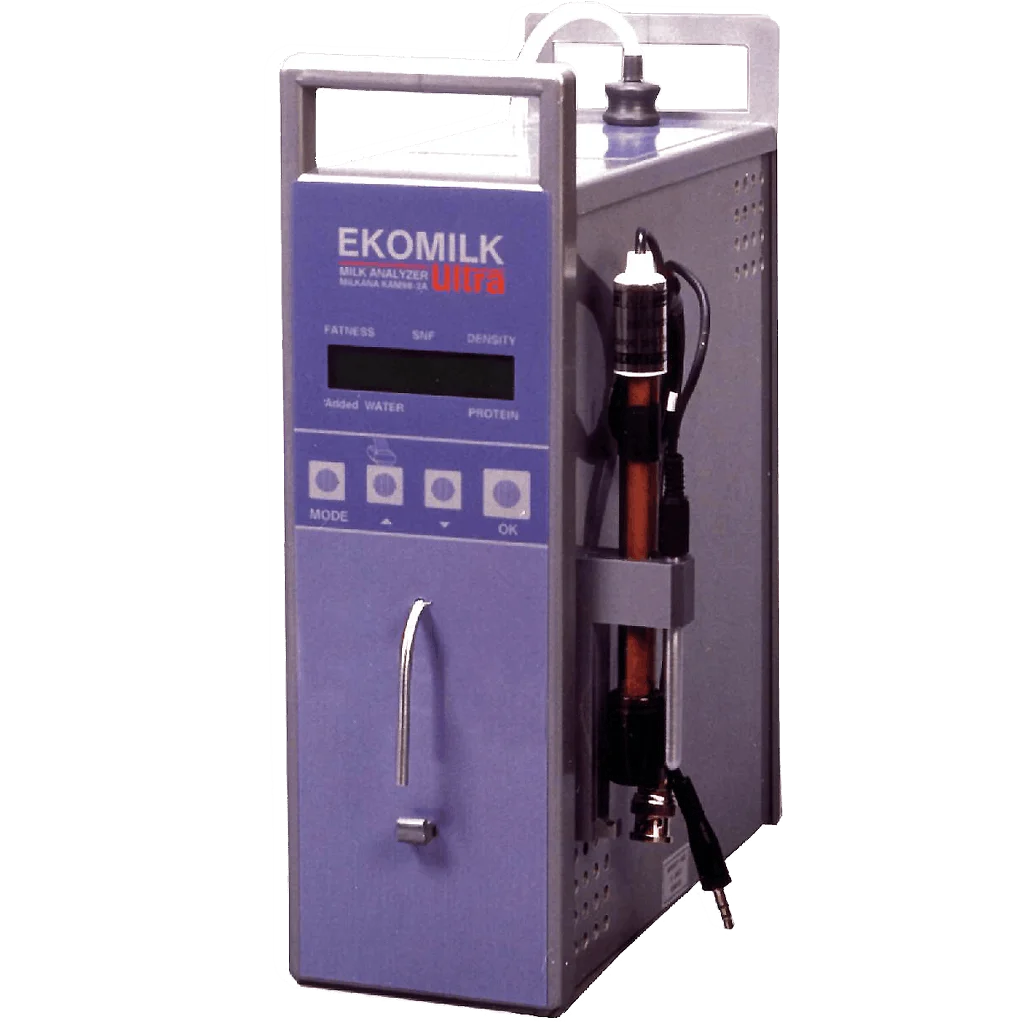

Milk analyzer Ekomilk ULTRA

Milk analyzer Ekomilk ULTRA is robust, reliable, automated multi-parameter milk analyzer providing rapid test results for: Fat, Protein, Solids Not Fat, Lactose, Density, Freezing point, Added Water, pH, Temperature and Conductivity in fresh milk (cow, sheep and/or buffalo, goat) for 40 seconds . Based on ultrasonic technology, the instrument does not require any costly chemicals, caustic or reagents for testing

Measuring cycle 65-70 measurement per hour

Category: Milk analyzers Ekomilk Tags: Ekomilk, milk analyzer

Key Features

Simple in use and maintenance, reliable and automated;
Multi-parameter milk analysis;
Customer available readjustment of measurement accuracy;
Fast and low cost analysis
No acid or other chemicals are used;
Very small quantity of milk is required;
Short measurement time and low power consumption;
One year full warranty;
Serial thermal printer support;/li>
RS 232 Interface;
Milk data demo software.

Measuring Parameters

Standard parameters:
Fat	0,5% to 12% with accuracy ± 0,1%
Solids non fat (SNF)	6% – 12% with accuracy ± 0.2%
Milk density	1,0260 g/cm³ – 1,0330 g/cm³± 0.0005 g/cm³
Protein	2% – 6% with accuracy ± 0.2%
Freezing Point	from 0 to -1.000 °C with accuracy ± 0,015 °C
Added water to milk	0% – 60% with accuracy ± 5%
Additional options:
Lactose*	0.5% to 7% with accuracy ± 0,2%
pH + temperature	0,00 – 14 pH with accuracy ± 0,02 0 – 50 °C with accuracy± 0,1 °C
pH + temperature + titratable acidity	0,00 – 14 pH with accuracy ± 0,02 0 – 50 °C with accuracy± 0,1 °C °Th, % La, °SH, °D
Conductivity	2 – 20 mS/cm with accuracy ± 1 % (18°C)

Conditions

Environmental Conditions:

Ambient air temperature 15° – 30°C
Milk temperature 5° – 35°C
Relative humidity 30% – 80%

Electrical Parameters:

AC Power Supply voltage 220V +10%/-15%
Optional – 110V +10%/-15%
DC Power Supply voltage 12V (10,5 V to 14,2 V)
Power Consumption 30W max

Mechanical Parameters:

Dimensions (WxDxH)
95 x 300 x 250 mm
Weight < 3,5 kg

Options

Data collection system

An embedded Data collection system that allows up to 120 milk measurement records to be saved inside the Analyzer. Each record contains all milk measured parameters values, milk vendor code, milk volume and the date and time of measurement. All these data can be transferred later to a PC trough the RS 232 interface.
